一．機床型號及名稱Machine Type and Name
1.型號：Y21-63Type: Y21-63 (or other)

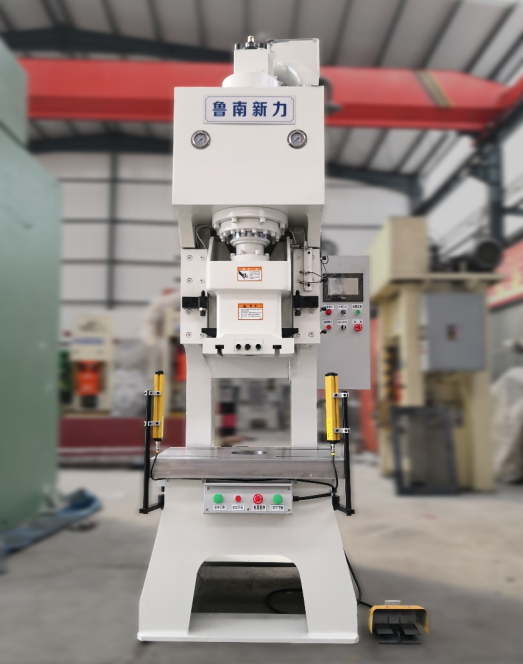

2.名稱：液壓沖床Name: Hydraulic Press Punch Machine
二.機床性能特點Machine tool performance characteristics
機身整體焊接，使用震動時效處理。
The whole fuselage is welded and vibration aging treatment is used.
內置快速油缸，平穩，安全，耐用。
Built in fast oil cylinder, stable, safe and durable
滑塊采用矩形六面導軌，穩定可靠。
The slider adopts rectangular six sided guide rail, which is stable and reliable
減少了傳統機械沖床上的曲軸，連桿，大小齒輪以及飛輪產生的噪音，是傳統沖床的最佳替代品。
It reduces the noise generated by the crankshaft, connecting rod, large and small gears and flywheel on the traditional mechanical punch. It is the best substitute for the traditional punch
操作便捷，安全可靠�？膳涔饽槐Ｗo裝置（選配），確保了工作的安全性。
The operation is convenient, safe and reliable. Light curtain protection device (optional) can be equipped to ensure the safety of work.
可方便調節行程大小，實現多工藝沖壓生產。
The stroke size can be adjusted to realize multi process stamping production.
有深喉/淺喉沖床，可為未來更新更換部件提供極大的便利，減少了傳統沖床所產生的時間和費用。
There are deep throat / shallow throat punches available in a variety of models.

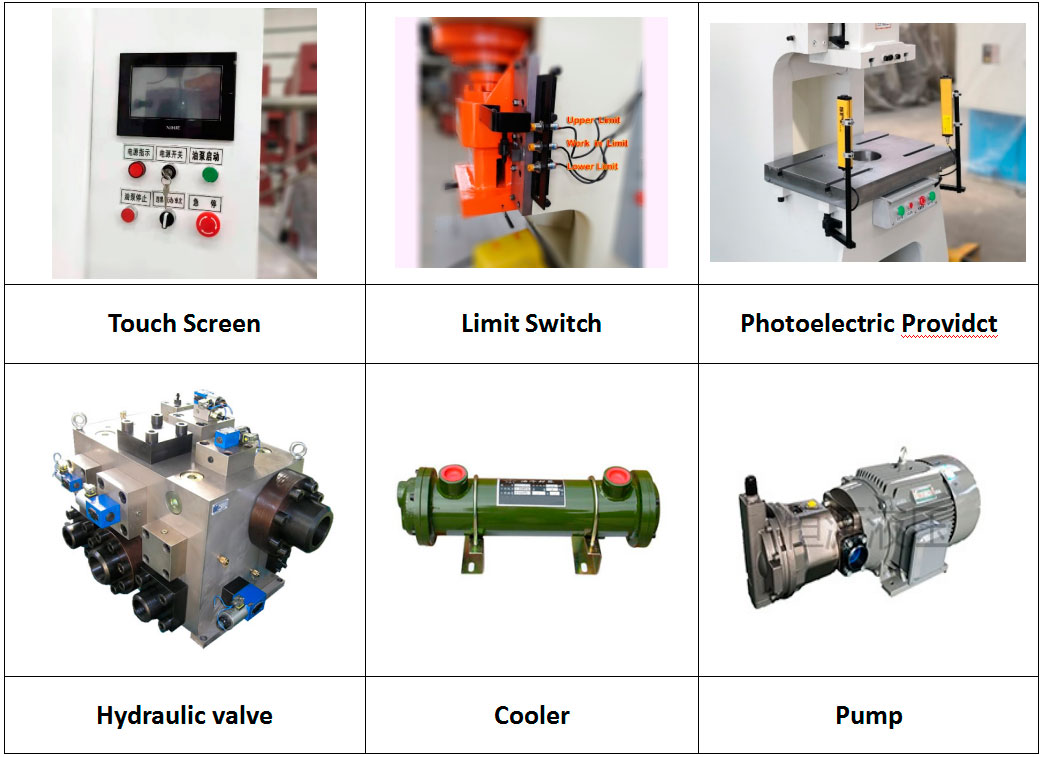

三.主要機床配置III Main machine tool configuration

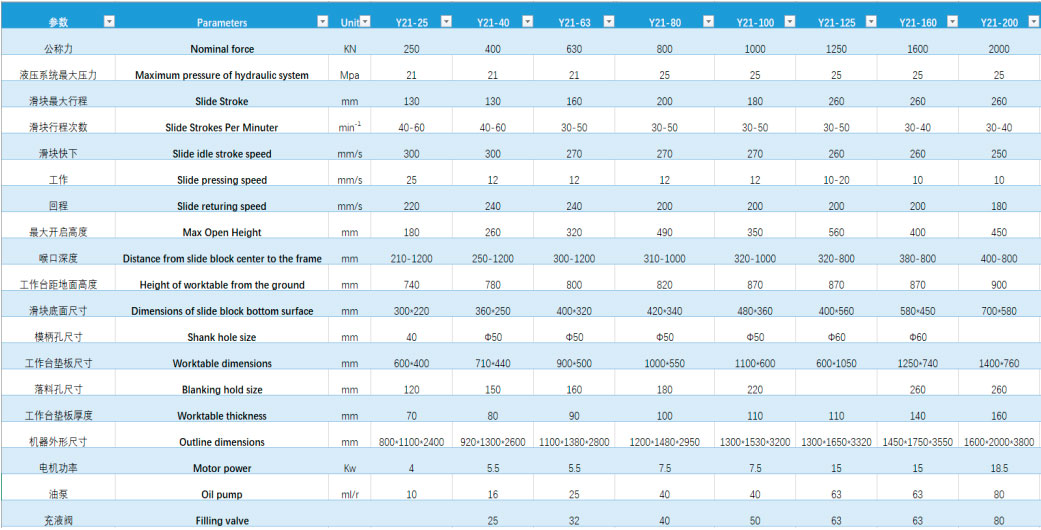

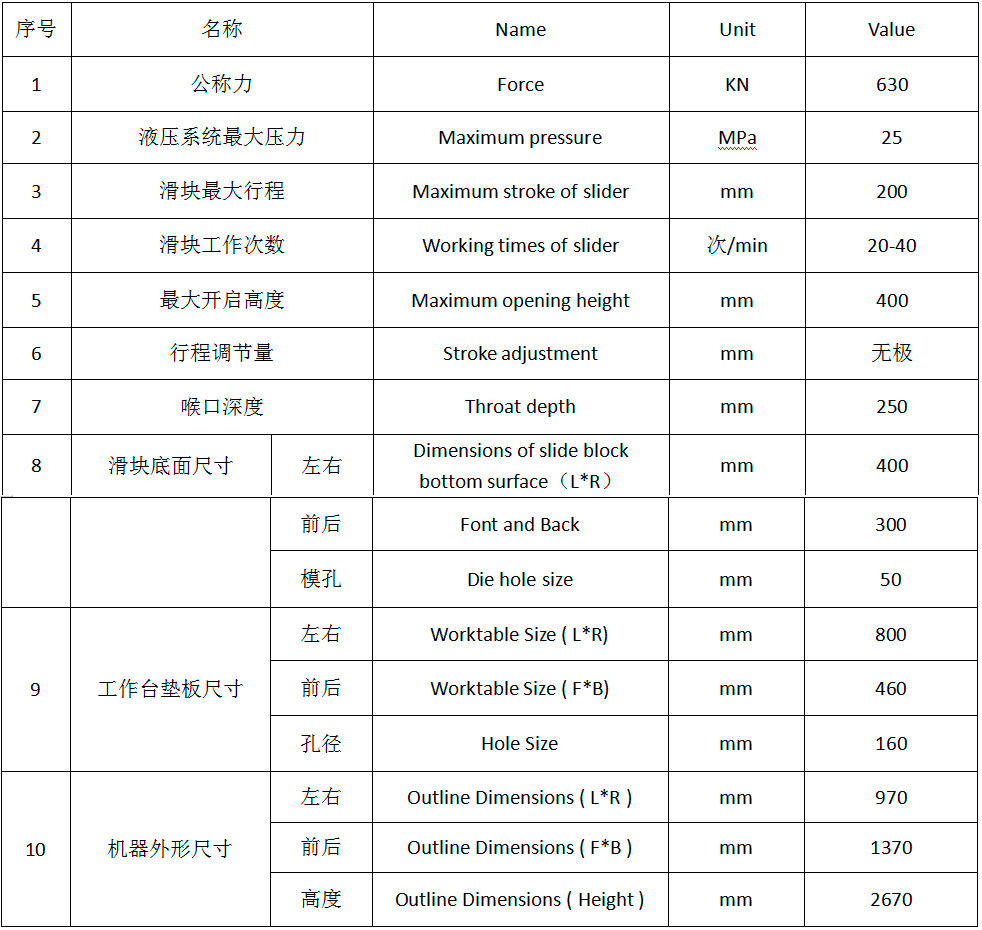

四.機床主要技術參數Main technical parameters of machine tools

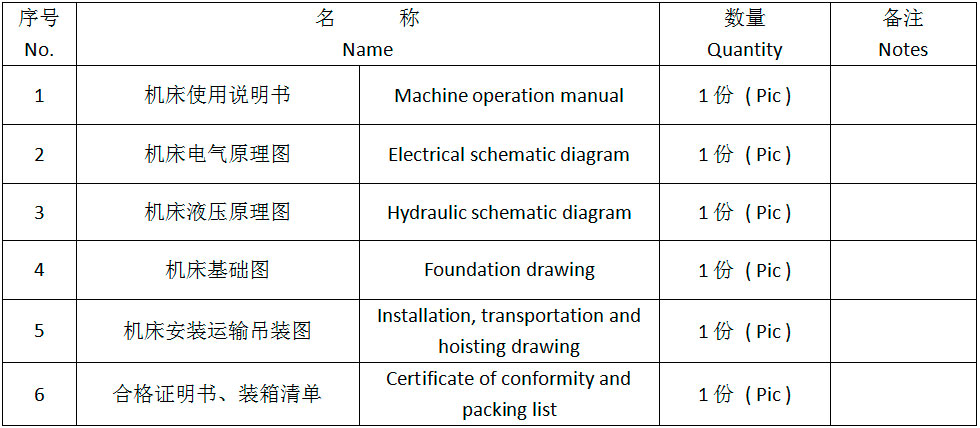

五.隨機技術資料 Attached technical data and accessories list

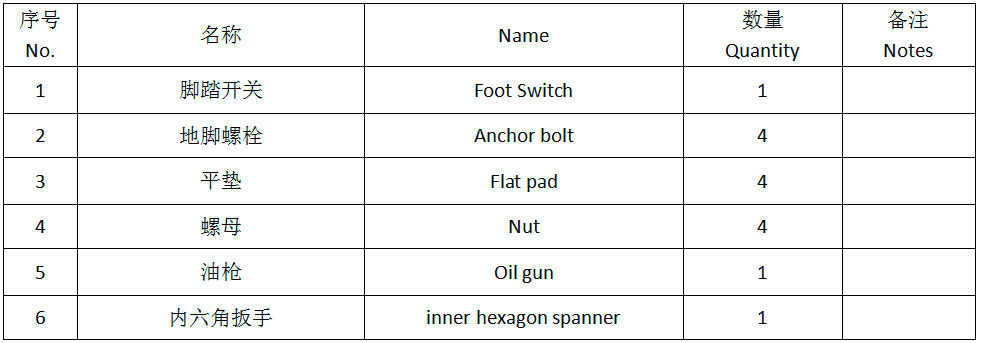

 六 隨機附件，配套件清單Attached accessories list
